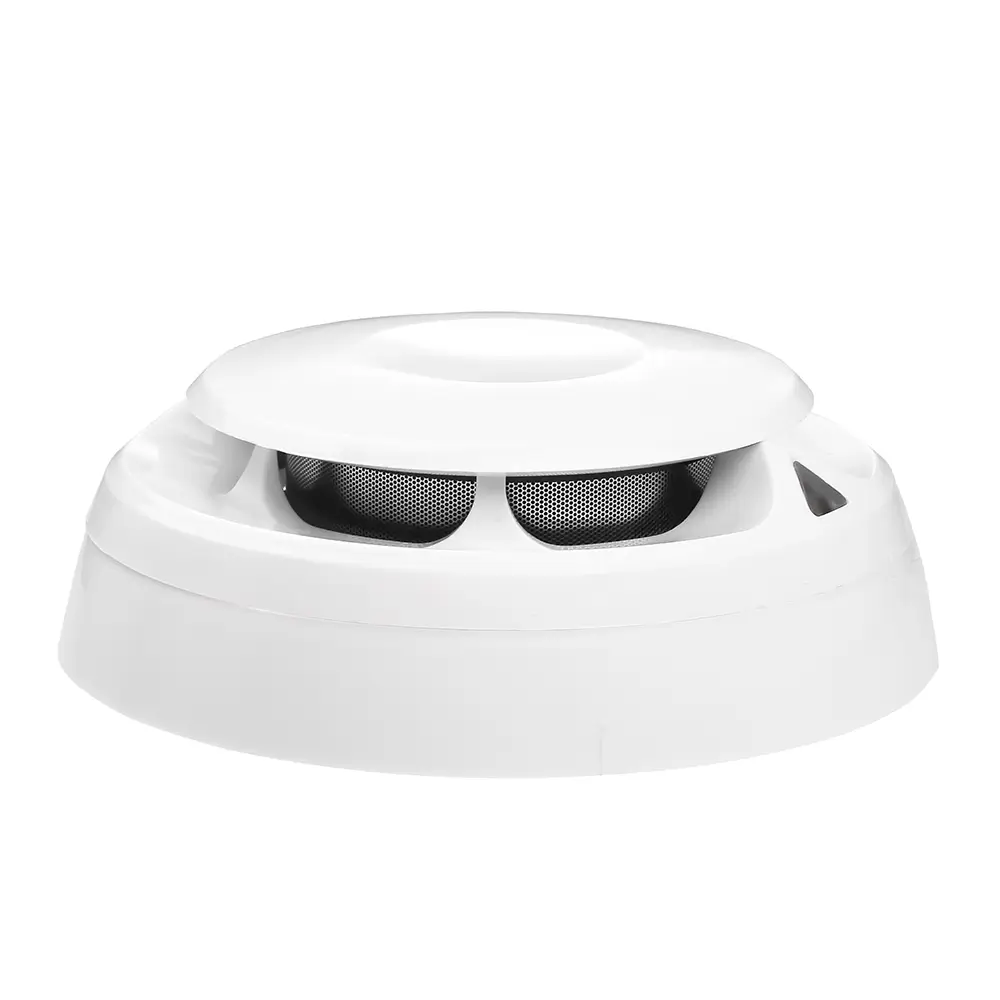

The S6-CRD-200 Conventional Rate of Rise Heat Detector is designed to detect both a fixed temperature threshold and rapid temperature increases, helping identify fire conditions at an early stage. Its A2R classification and dependable thermal response make it suitable for applications where heat-based detection is preferred.
Built for use in conventional fire alarm systems, the detector offers stable performance, low power consumption, and straightforward installation. It is a practical choice for locations such as kitchens, garages, boiler rooms, and other areas where vapor, dust, exhaust gases, or smoke-producing materials may reduce the suitability of optical smoke detection.
2-Year Money-Back Guarantee
Pre-Sales & Technical Support
Product Documentation Available
100% Customer Satisfaction
| Technical Specifications | |
|---|---|
| Model | S6-CRD-200 |
| Compatibility | EN 54-5 |
| Detector Class | A2R |
| Power Supply | 27 V |
| Standby Consumption | 65 µA |
| Alarm State Current | 25 mA |
| Alarm Temperature | 54 °C – 70 °C |
| Operating Temperature | -10 °C / 70 °C |
| Humidity | 95% (Without Condensation) |
| Dimensions | 50 x 100 mm |
| Weight | 140 gr |
