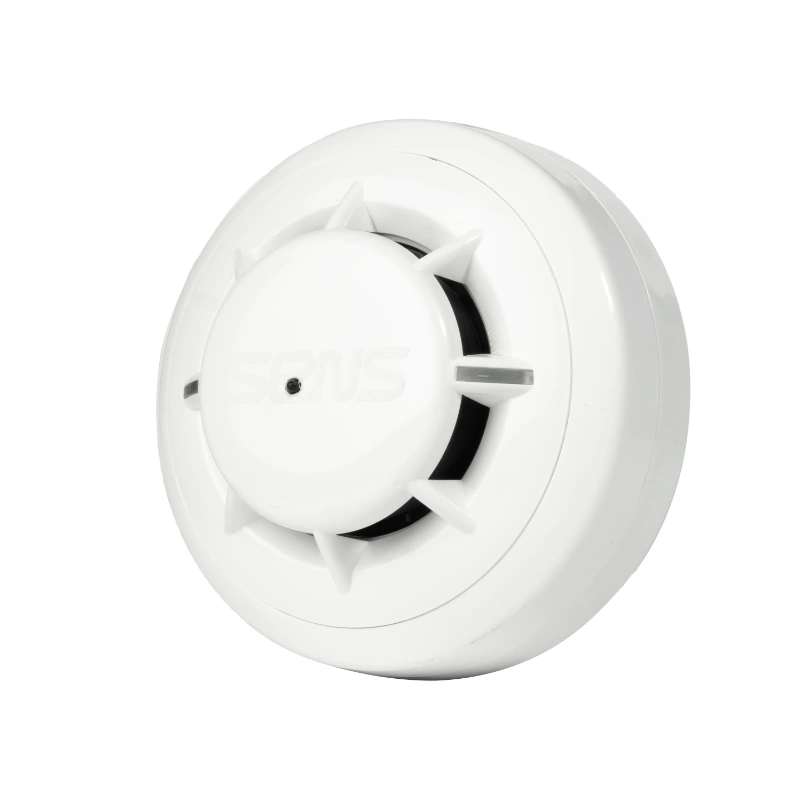

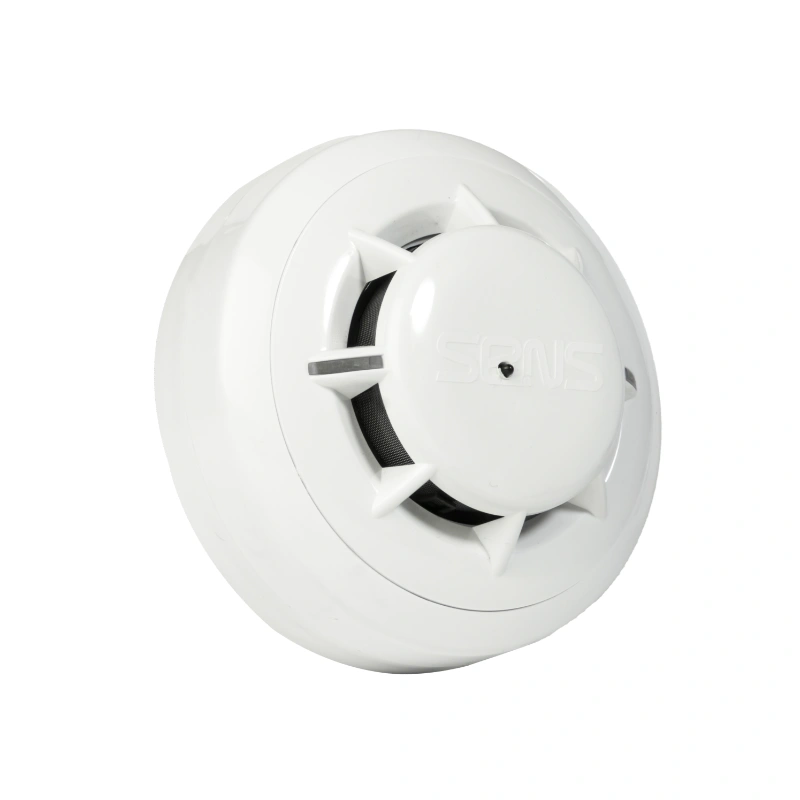

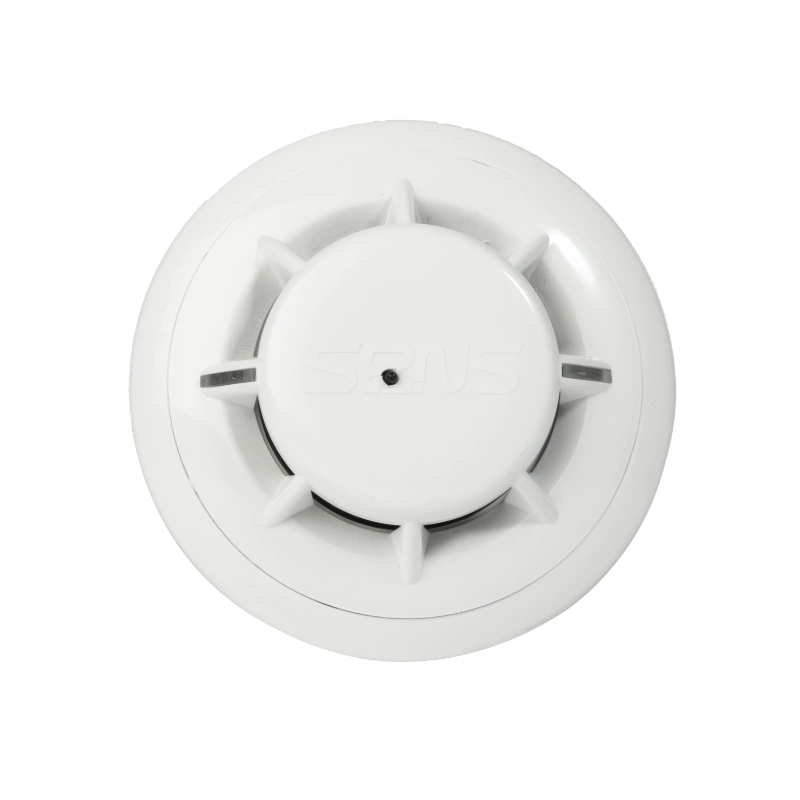

S2-CMD-200 Conventional Smoke/Heat Combination Detector

The S2-CMD-200 is a conventional multi-sensor detector that combines a smoke detector and a fixed-temperature heat detector in a single unit. According to the uploaded datasheet, it detects smoke in the environment while also monitoring ambient temperature, becoming active when temperatures rise within the specified alarm range. The product literature also highlights remote indicator output, compatibility with SENS conventional control panels, low power consumption, LED status indication, and easy installation. The manual further shows remote indicator connection and zone wiring guidance for conventional systems.

2-Year Money-Back Guarantee
Pre-Sales & Technical Support
Product Documentation Available
100% Customer Satisfaction

Technical Specifications
Model S2-CMD-200
Compatibility EN 54-5, 7
Detector Class A2S
Power Supply 27 V
Standby Consumption 65 µA
Alarm State Current 25 mA
Alarm Temperature 54 °C – 70 °C
Operating Temperature -10 °C / 70 °C
Humidity 95% (Without Condensation)
Dimensions 50 x 100 mm
Weight 150 gr
