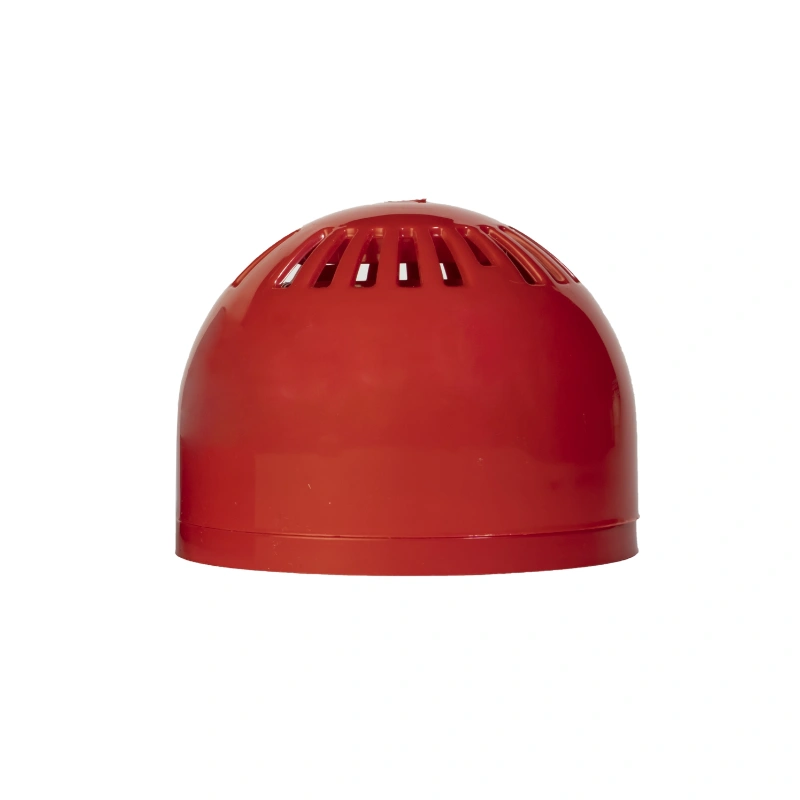

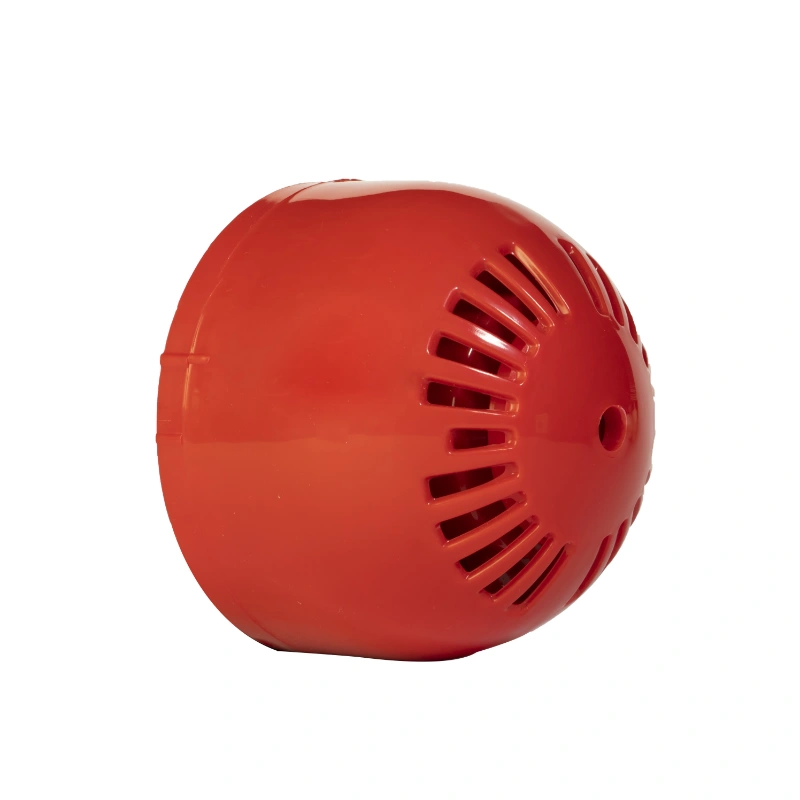

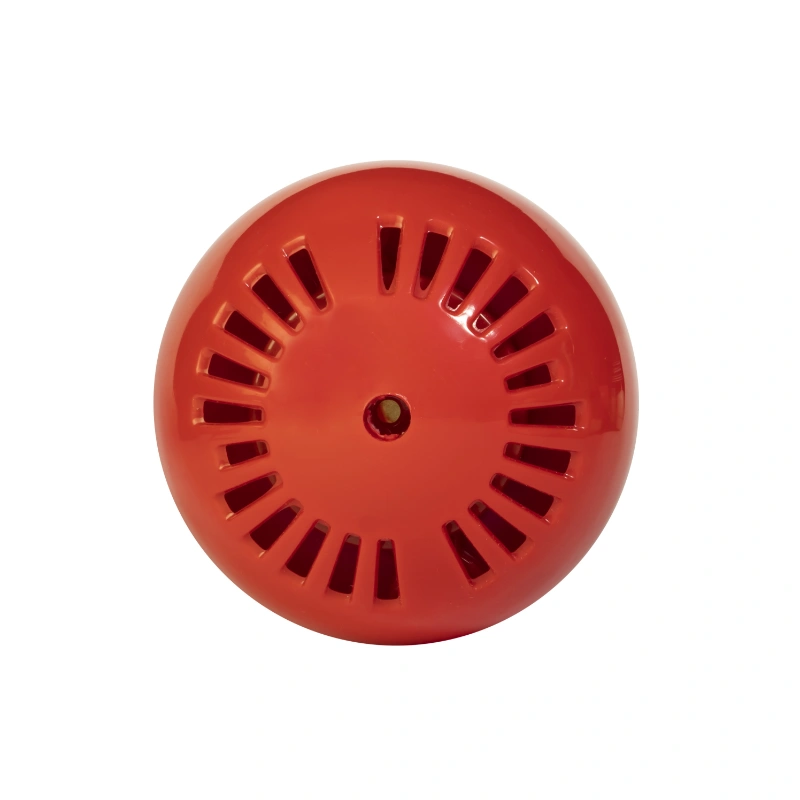

The F1-ASM-300 is an addressable sounder developed for indoor use in addressable fire alarm systems. Designed according to EN 54-3 and EN 54-17, it includes a built-in isolator, low power consumption, dual-tone sound mode, and easy address programming with a handheld programmer. The device is compatible with WISE addressable panels and other SENS addressable panels, and its ABS enclosure supports practical wall or ceiling installation in indoor environments.
2-Year Money-Back Guarantee
Pre-Sales & Technical Support
Product Documentation Available
100% Customer Satisfaction
| Technical Specifications | |
|---|---|
| Model | F1-ASM-300 |
| Design Standard | EN 54-3, EN 54-17 |
| Power Supply Voltage | 27 V |
| Standby Consumption | 0.6 mA @ 27 V |
| Alarm State Current | 6–6.4 mA @ 27 V |
| Operating Temperature | -10 to 70 °C |
| Humidity | 95% (without condensation) |
| Type | Type A (for indoor use) |
| IP Protection | IP21 |
| Sound Output | 80 dB/m |
| Frequencies Range | 600 Hz – 4 kHz |
| Sound Mode | Dual Tone |
| Dimensions | 75 × 100 mm |
| Weight | 150 gr |
