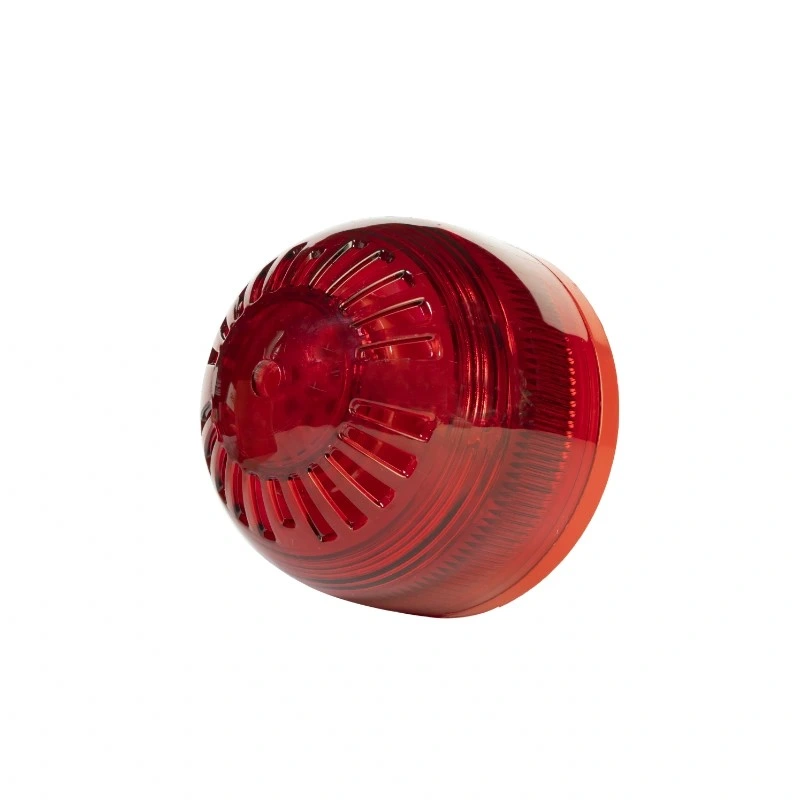

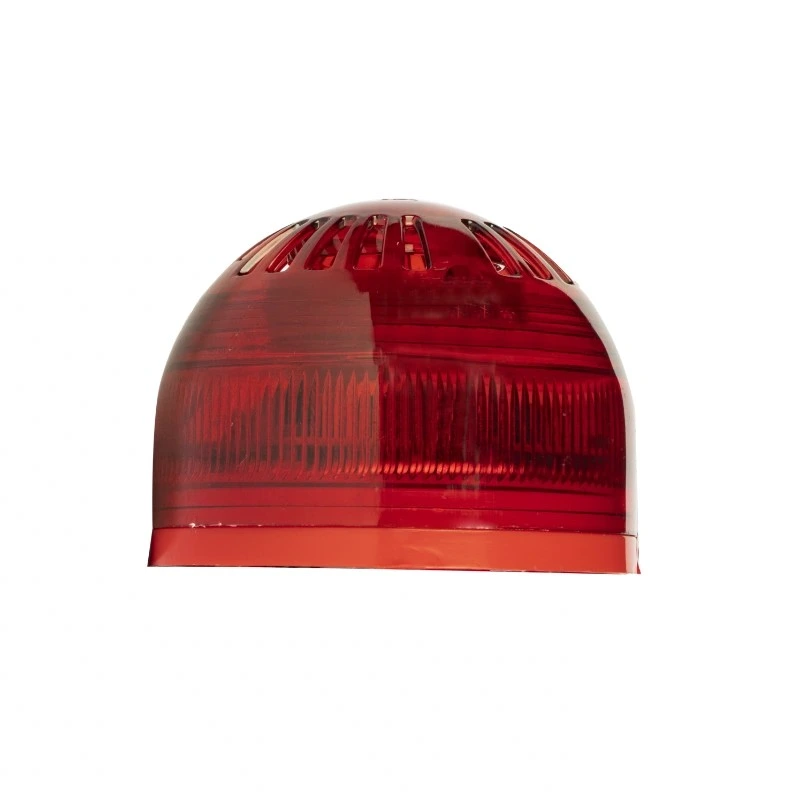

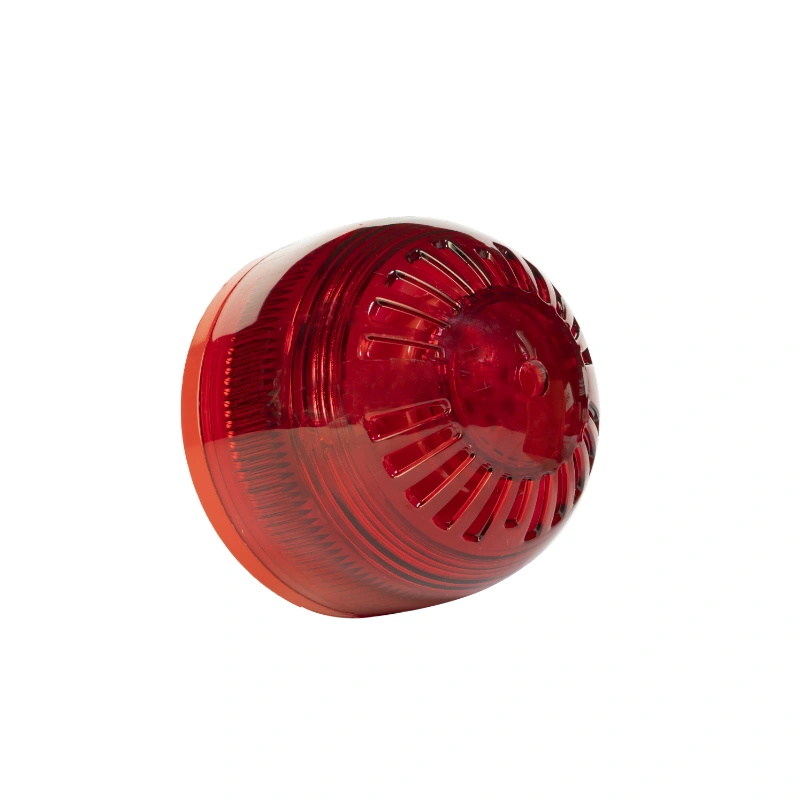

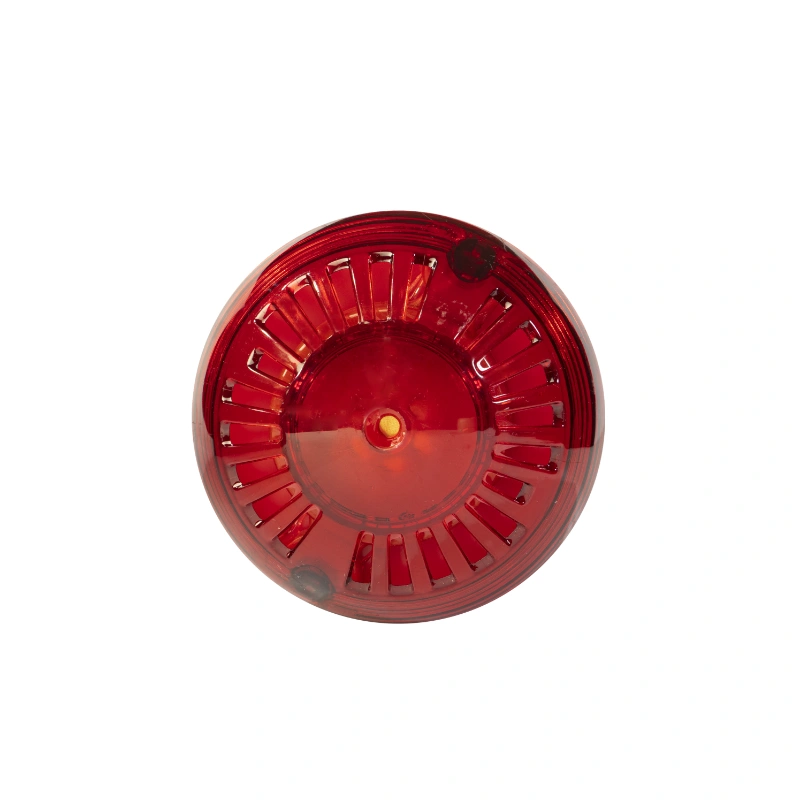

F1-ASF-300 Addressable Sounder/Flasher

The F1-ASF-300 is an addressable wall-mount sounder/flasher developed for indoor fire alarm systems that require both sound and light indication. According to the uploaded product literature, it is powered by the loop, includes a built-in isolator, and communicates through the system protocol. Its design supports dependable performance in indoor environments, including smoke-filled conditions where visual indication is also important. The unit is compatible with WISE and other SENS addressable panels and supports easy address programming with a handheld programmer.

2-Year Money-Back Guarantee
Pre-Sales & Technical Support
Product Documentation Available
100% Customer Satisfaction

Technical Specifications
Model F1-ASF-300
Compatibility EN 54-3, 17
Power Supply 27 V
Standby Consumption 0.6 mA @ 27 V
Alarm State Current 6–6.4 mA @ 27 V
Operating Temperature -10 °C / 70 °C
Humidity 95% (Without Condensation)
Type Tip A (For Indoor Use)
IP Protection IP21
Sound Level 80 dB/m
Frequencies Range 600 Hz – 4 kHz
Sound Mode Dual Tone
Dimensions 75 × 100 mm
Weight 150 gr

Need pricing, lead time, or technical guidance?

Contact Atlas Pro Supply for quotation requests, product information, and project support.
