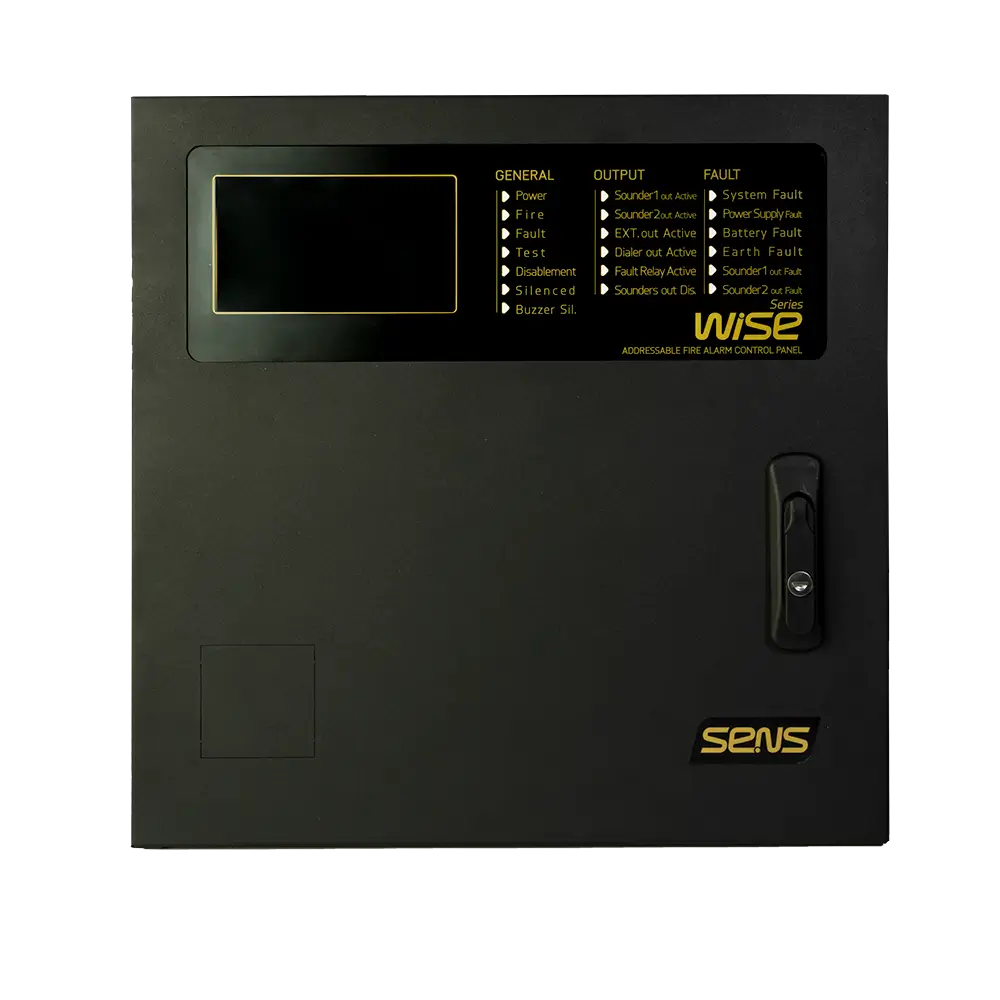

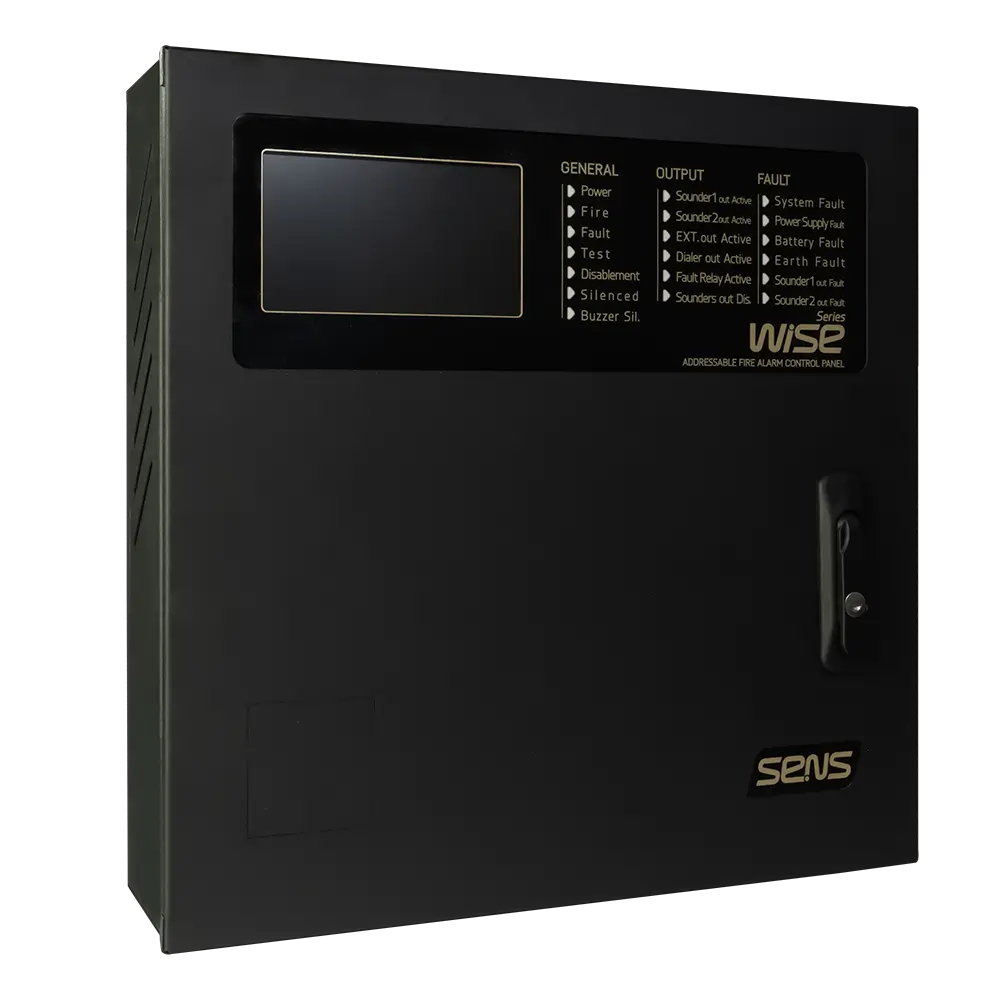

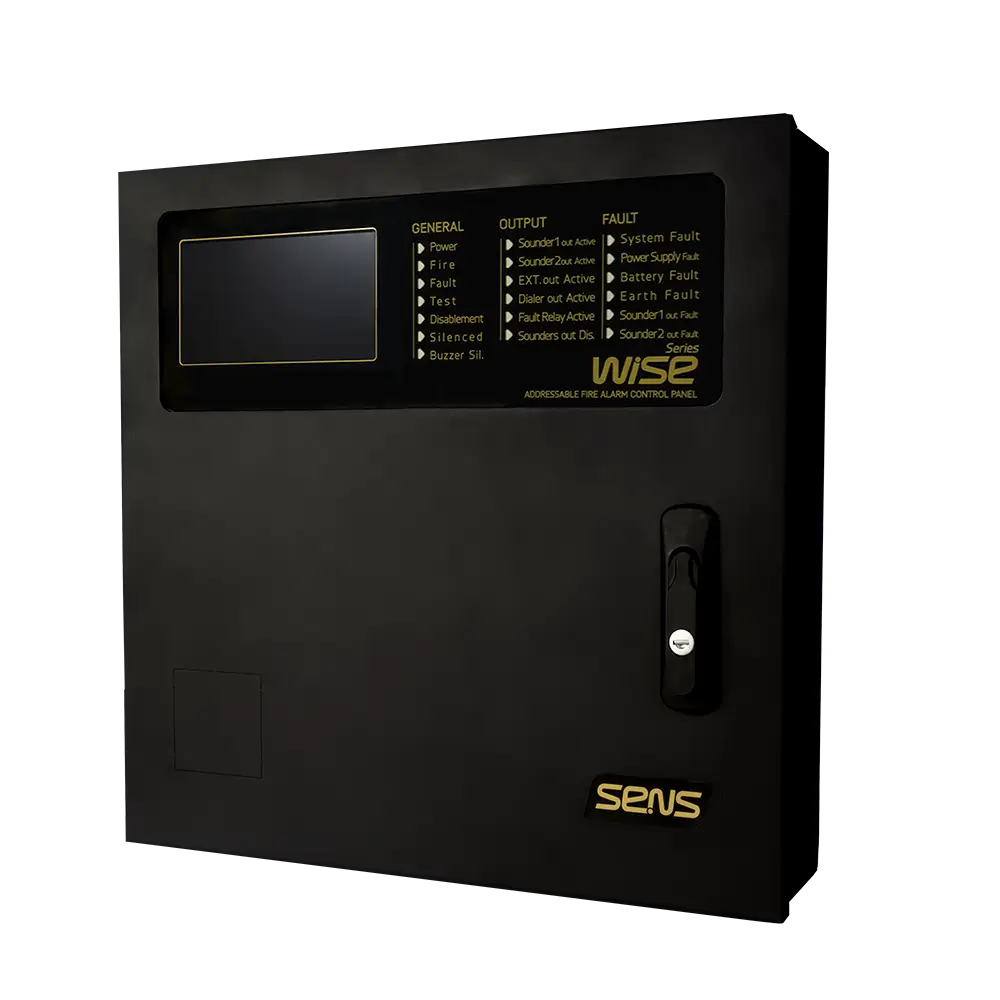

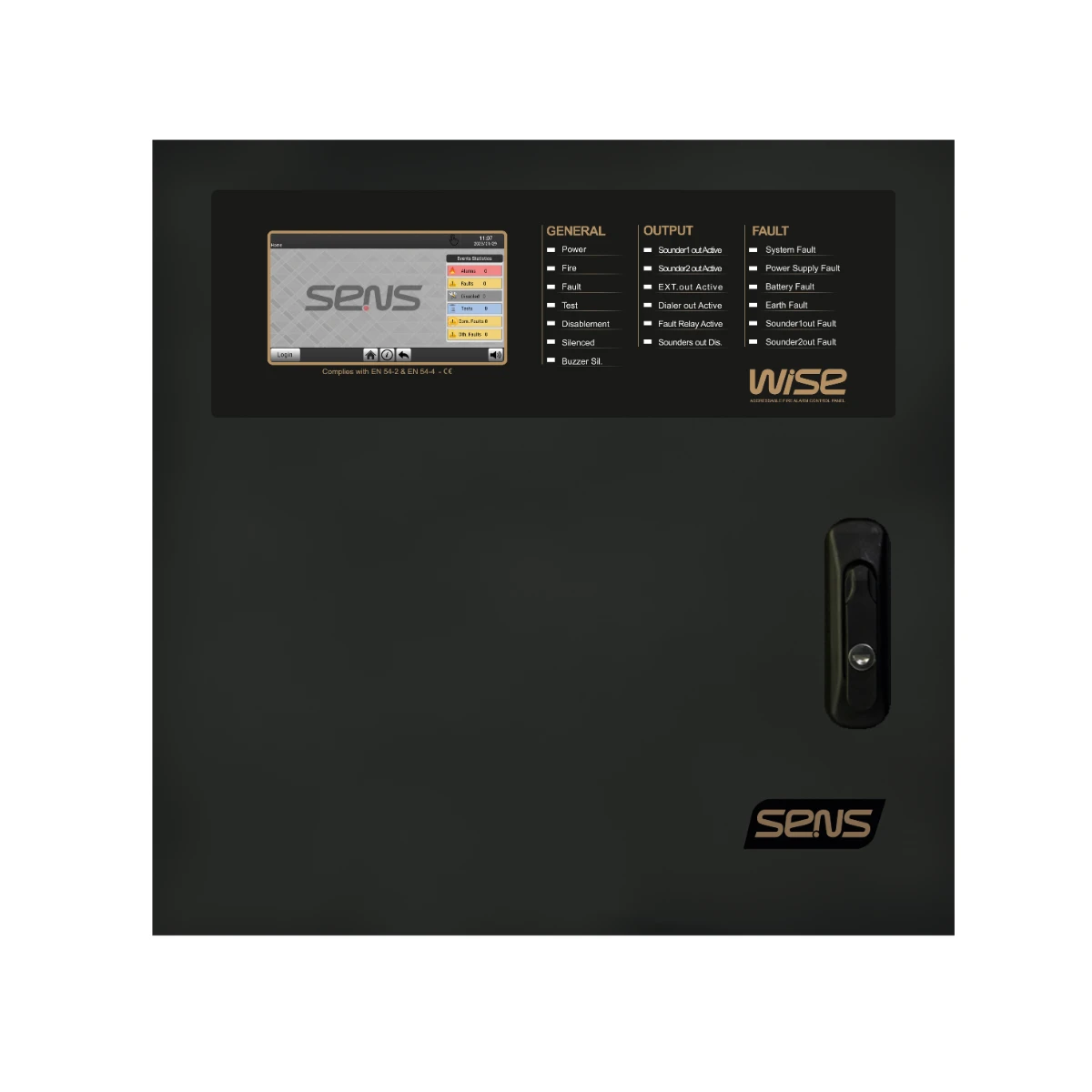

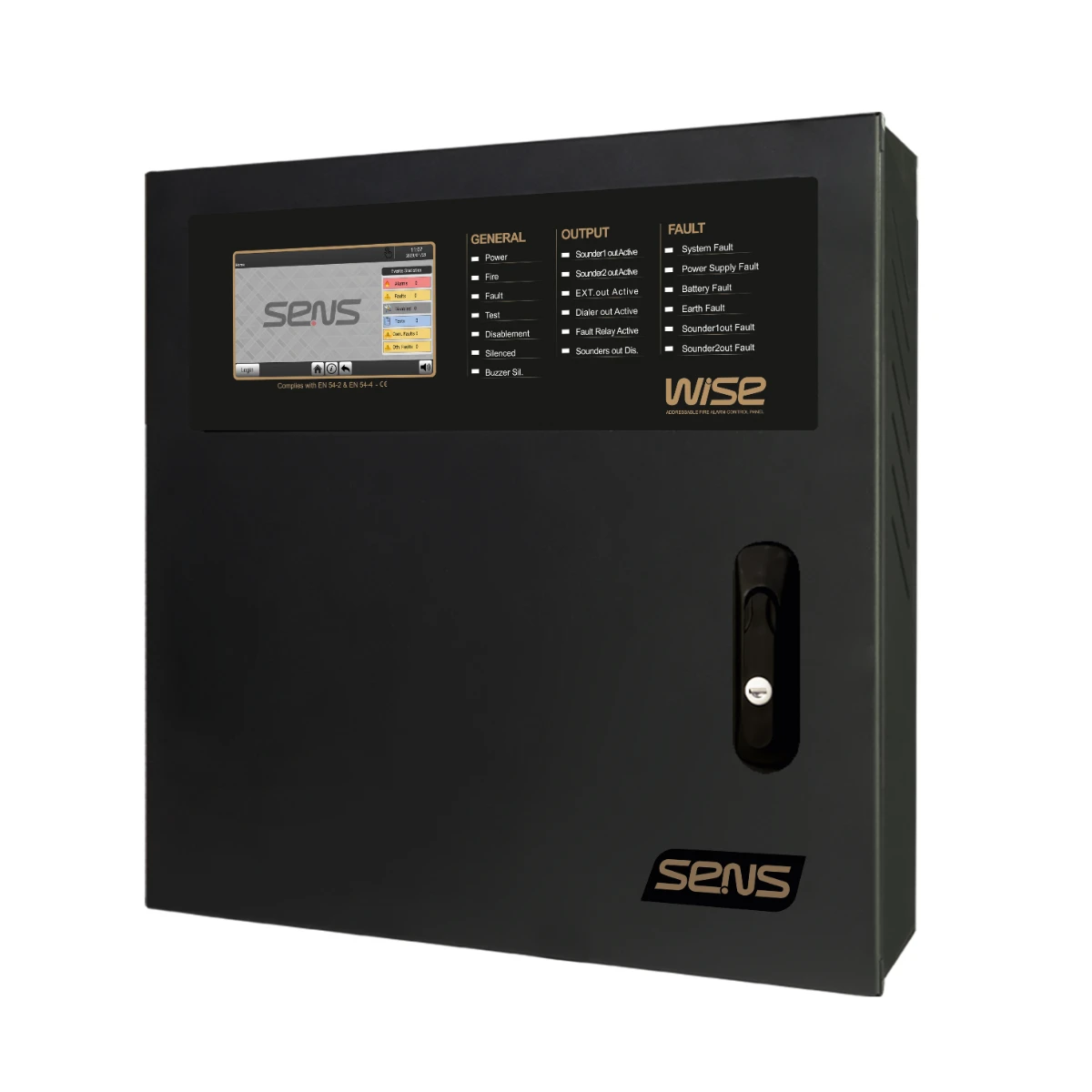

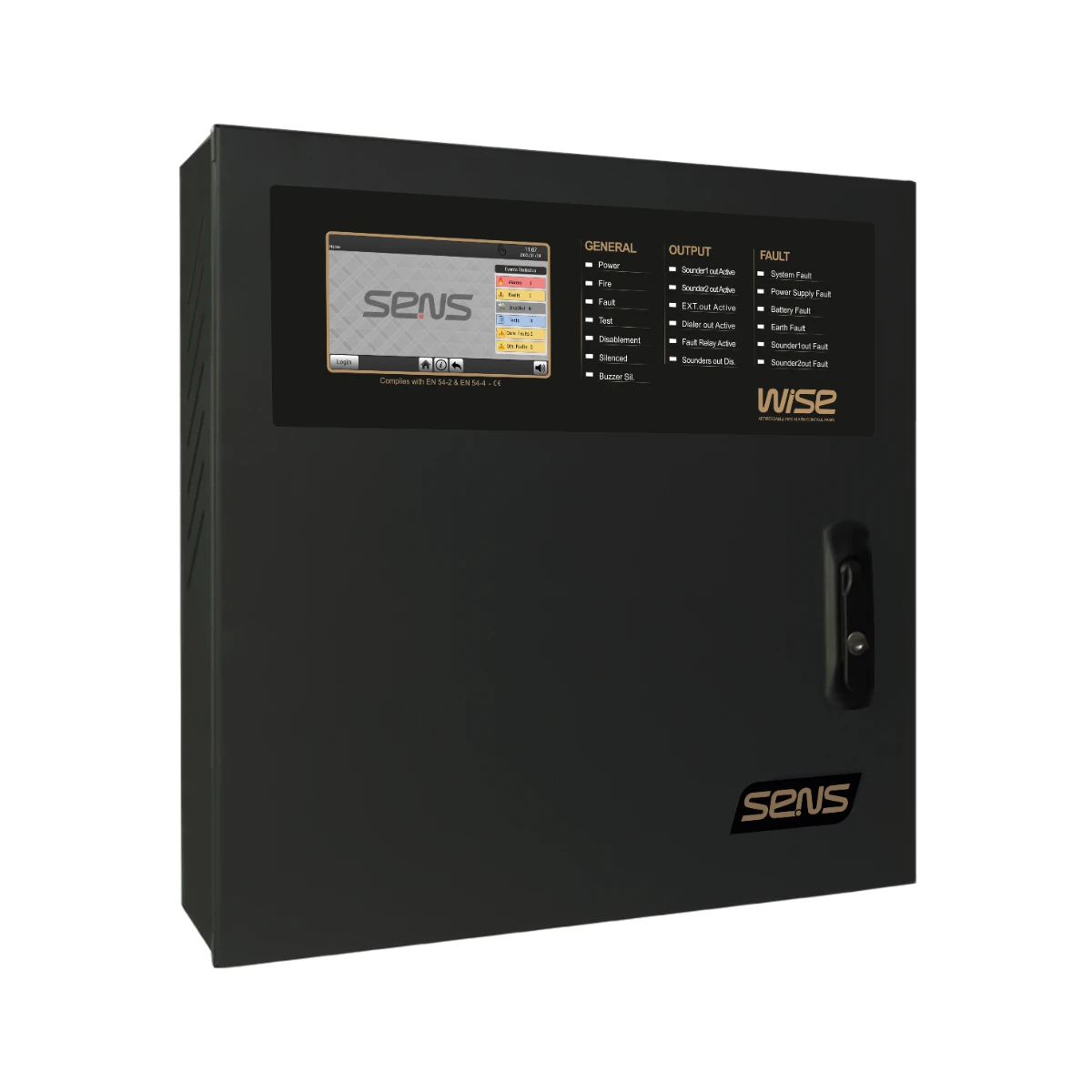

The W1-ACP-308 WISE is an 8 loop addressable control panel developed for larger installations that need higher loop capacity and stronger expansion potential. It is well suited to projects where a more substantial addressable layout, coordinated control, and long-term scalability are part of the system design requirements.
2-Year Money-Back Guarantee
Pre-Sales & Technical Support
Product Documentation Available
100% Customer Satisfaction
| Technical Specifications | |
|---|---|
| Model | W1-ACP-308 |
| Compliance | EN 54-2, EN 54-4 |
| Supply Voltage | 220 V, 50/60 Hz |
| Maximum Current Consumption | 500 mA |
| Input Fuse | 4 A |
| Battery Type | 2 × 12 V, 7.2 Ah |
| Display | 480 × 800 Graphic Display |
| Sounder Output | 2 Channels, Maximum 1000 mA |
| AUX Output | 24 V, 500 mA |
| Number of Loops | 8 |
| Maximum Number of Loops | 10 |
| Maximum Devices per Loop | 240 |
| Maximum Number of Output Zones | 32 |
| Maximum Number of Logic Functions | 32 |
| Loop Voltage | 27 V |
| Maximum Number of Network Panels | 16 |
| Maximum Number of Repeater Panels | 2 |
| Maximum Fire Relay Output Current | 7 A |
| Maximum Fault Relay Output Current | 7 A |
| RJ-45 Port | 1 |
| RS-485 Port | 1 |
| USB 2.0 Port | 1 |
| Telephone Dialer Output | 1 |
| Ethernet Port | 1 |
| Relative Humidity | 93% RH |
| Operating Temperature | -10°C to 55°C |
| Cabinet Material / Color | Metal / Black |
| Dimensions | 485 × 485 × 120 mm |
| Weight | 9.5 kg |
