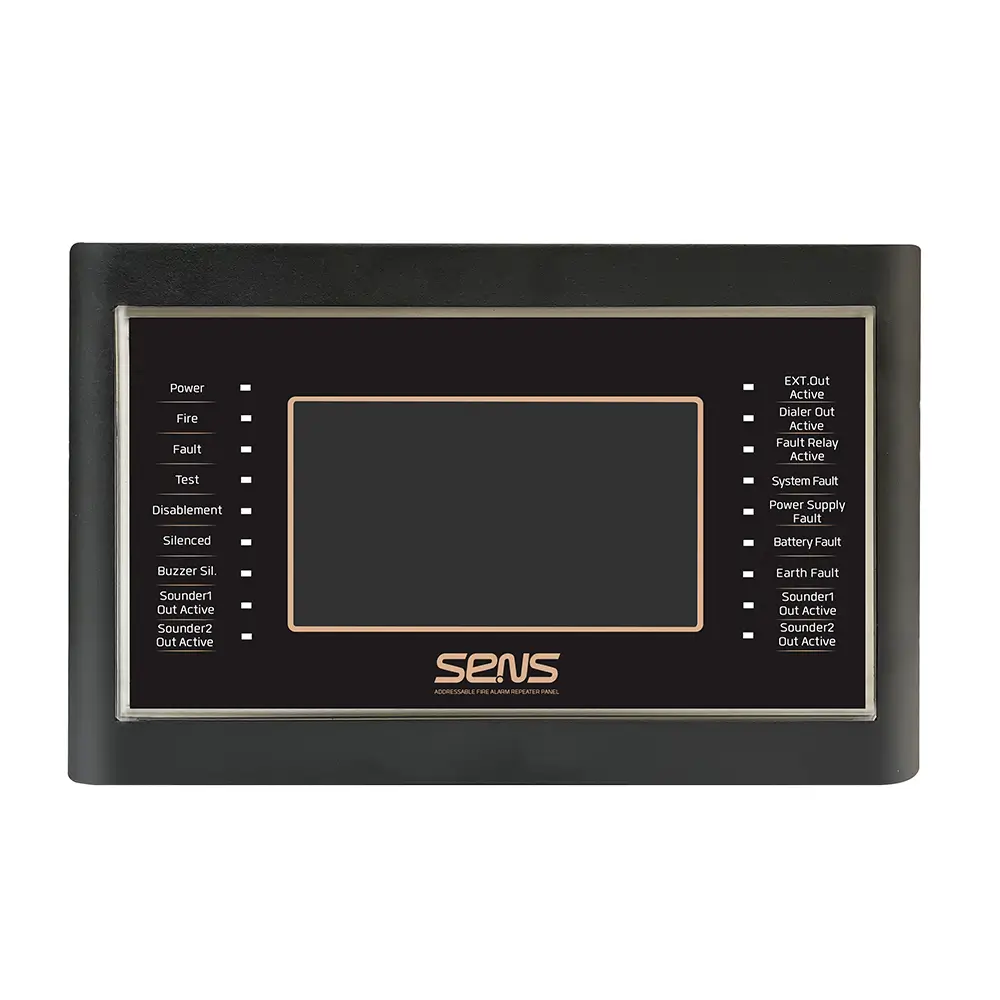

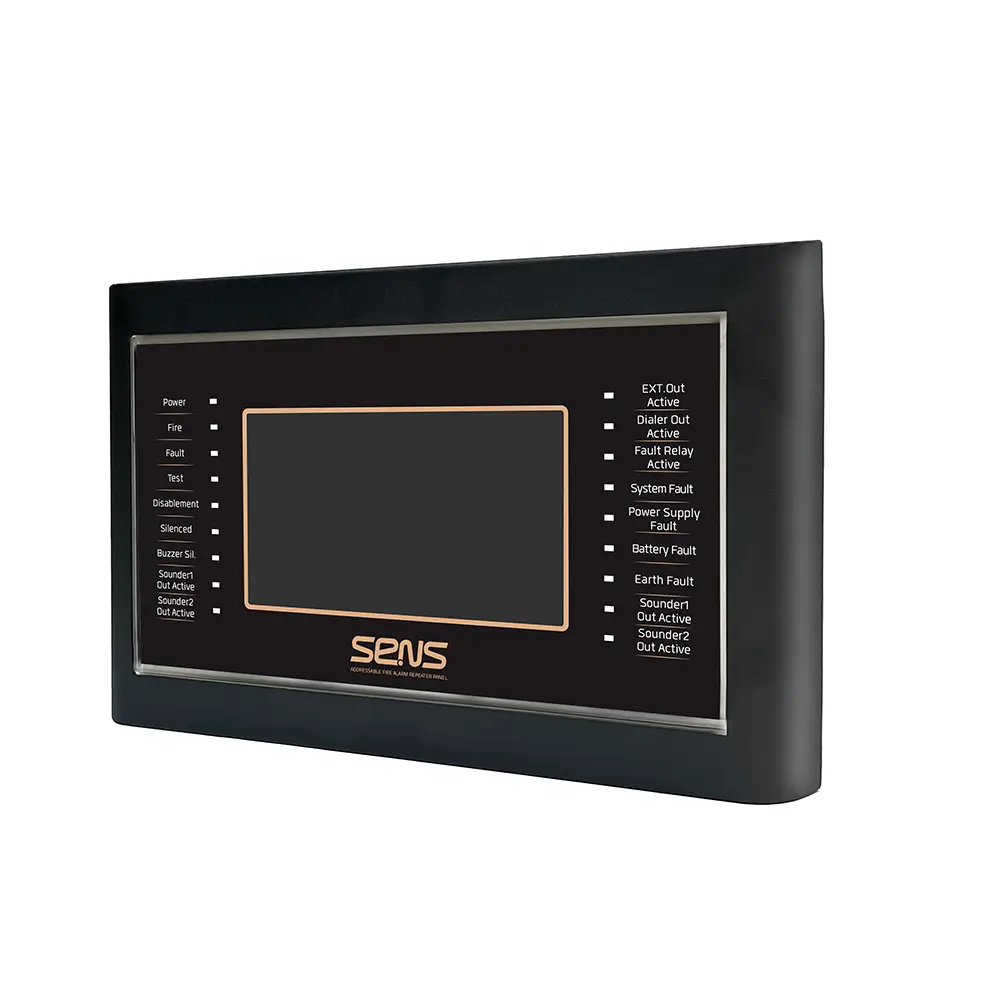

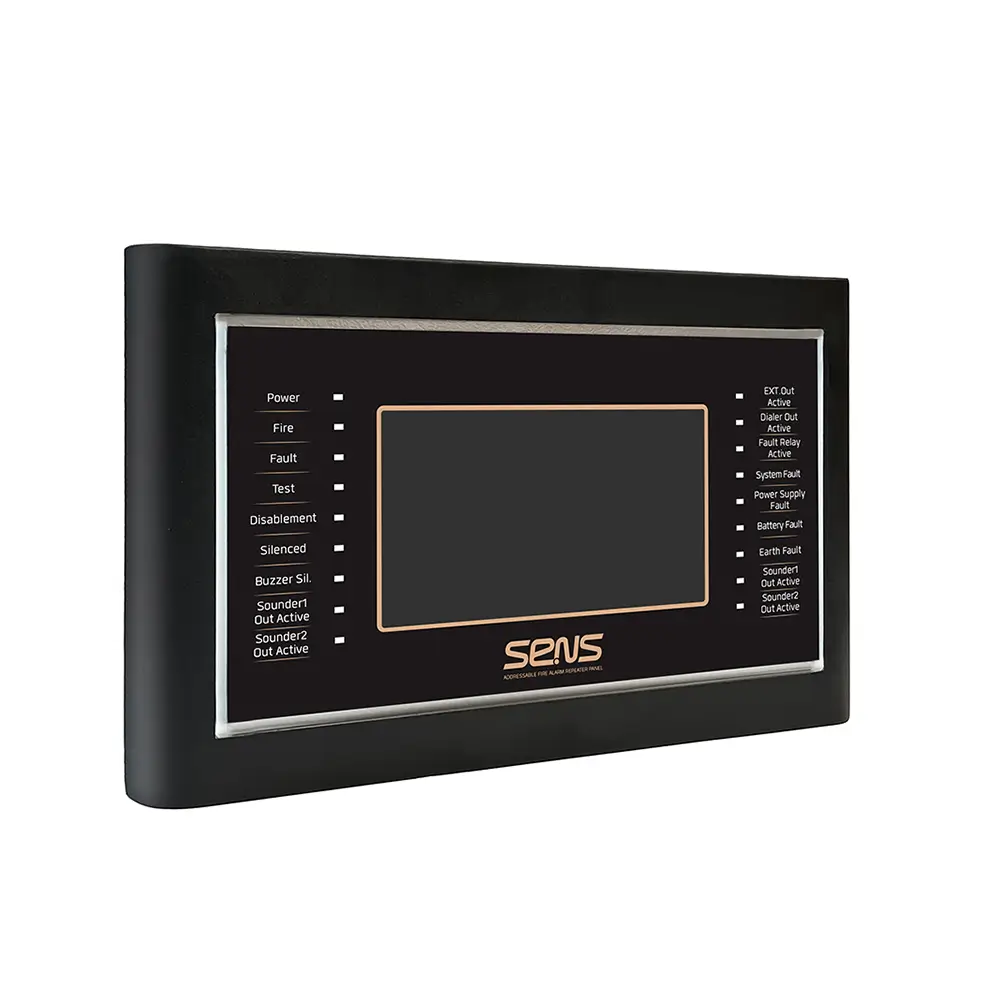

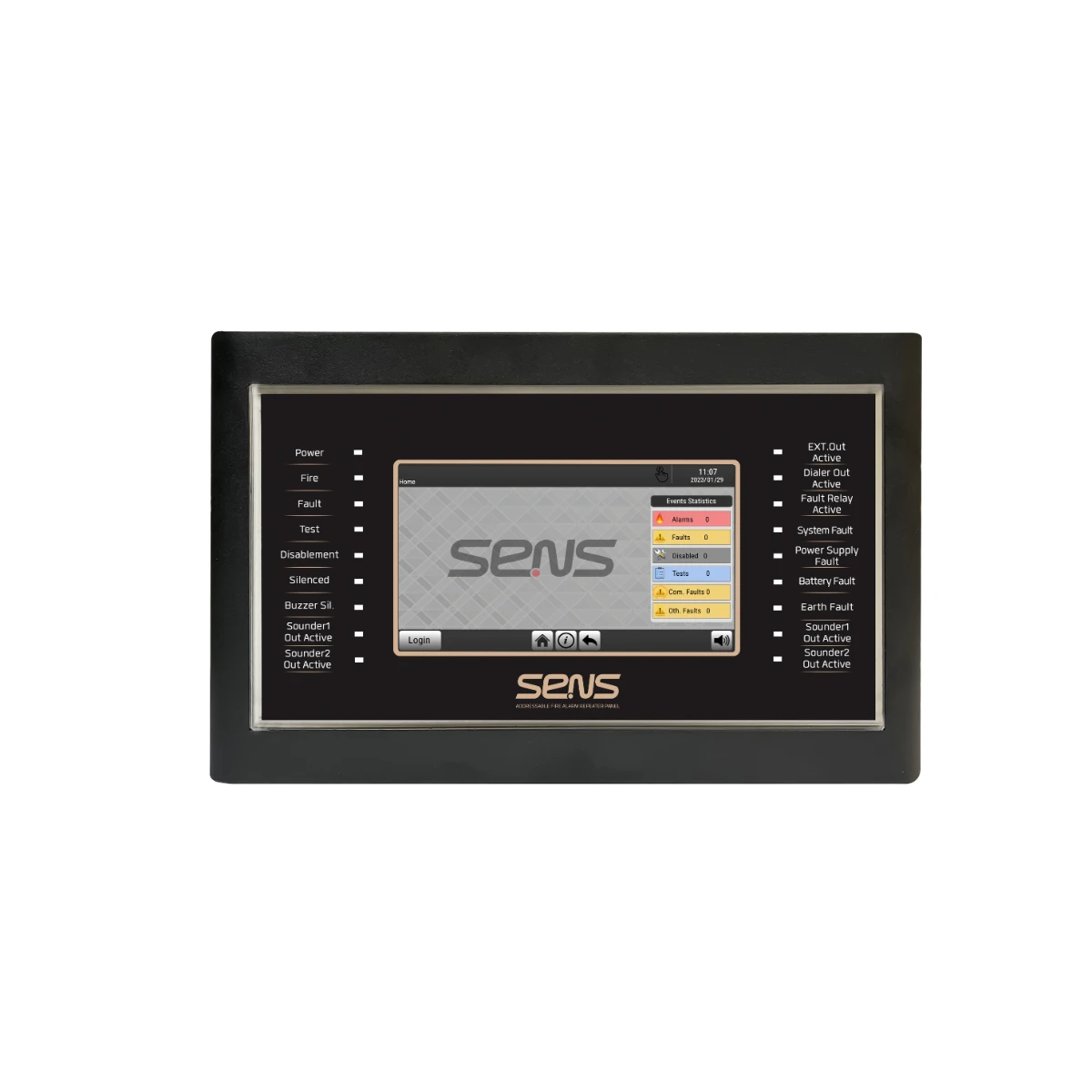

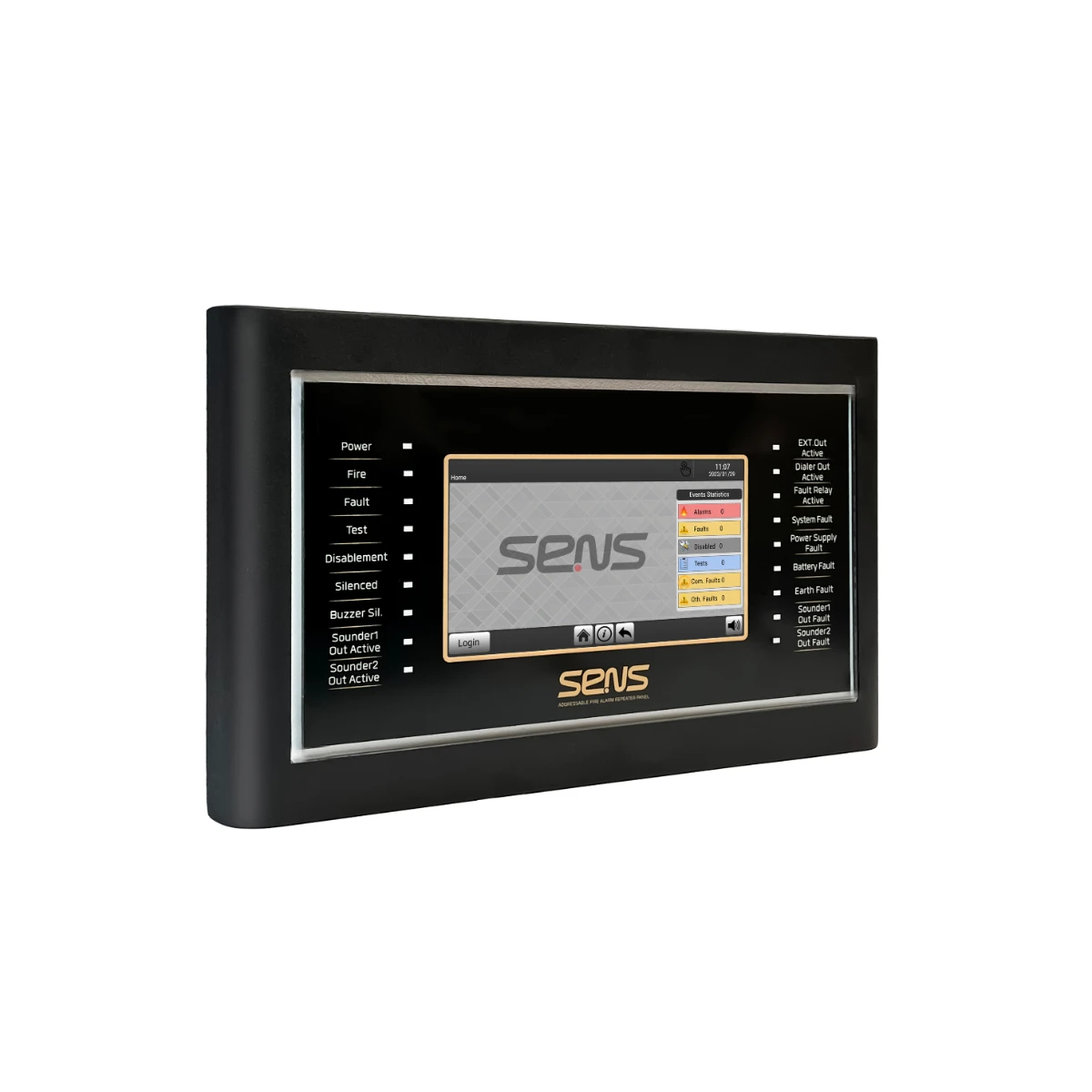

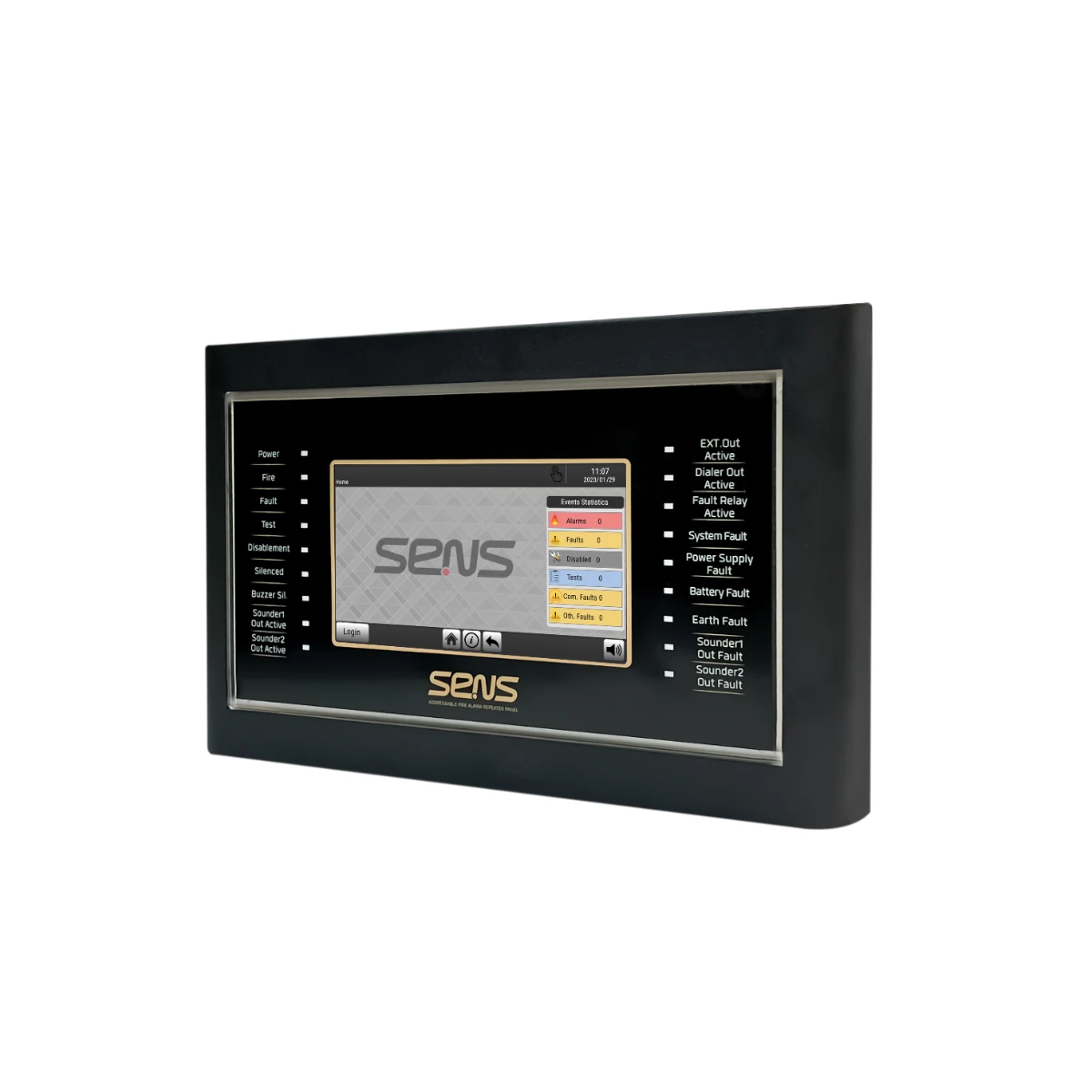

The SENS W2-ARP-300 Addressable Repeater Panel is designed for integration with compatible addressable fire alarm control panels, providing reliable RS-485 communication, remote system monitoring, and convenient control access. Featuring a 7-inch touchscreen display, 18 LED indicators, and support for communication distances up to 800 m, it is a practical solution for lobbies, security desks, and other remote monitoring points.
2-Year Money-Back Guarantee
Pre-Sales & Technical Support
Product Documentation Available
100% Customer Satisfaction
| Technical Specifications | |
|---|---|
| Model | W2-ARP-300 |
| Supply Voltage | 24 V AUX |
| Maximum Current | 150 mA |
| Temperature Range | -10 °C / 40 °C |
| Display | 7-inch 480 × 800 TFT Touchscreen |
| Status LEDs | 18 |
| Audible Alarm Type | Buzzer |
| Background Color Indication |
White: Normal Condition Red: Fire Condition (Active/Passive) |
| Communication Interface | 2-wire RS-485 |
| Baud Rate | 115200 bps |
| Maximum Number of Repeaters | Up to 2 repeaters |
| Maximum Distance Between Panel and Repeater | 800 m |
| Multilingual Support | 4 languages |
| Dimensions | 340 × 210 × 60 mm |
| Weight | 2.5 kg |
