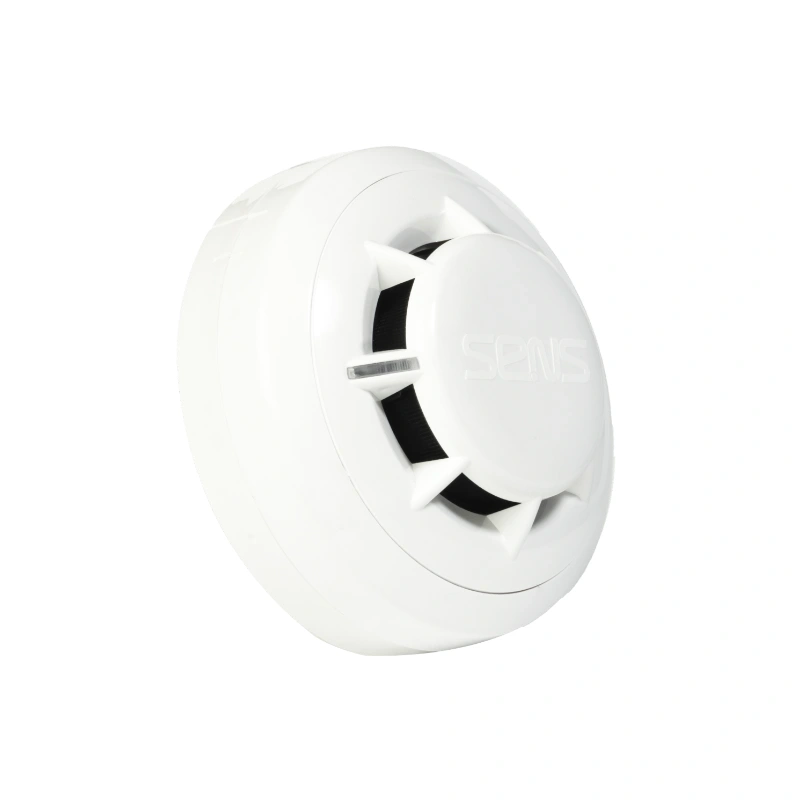

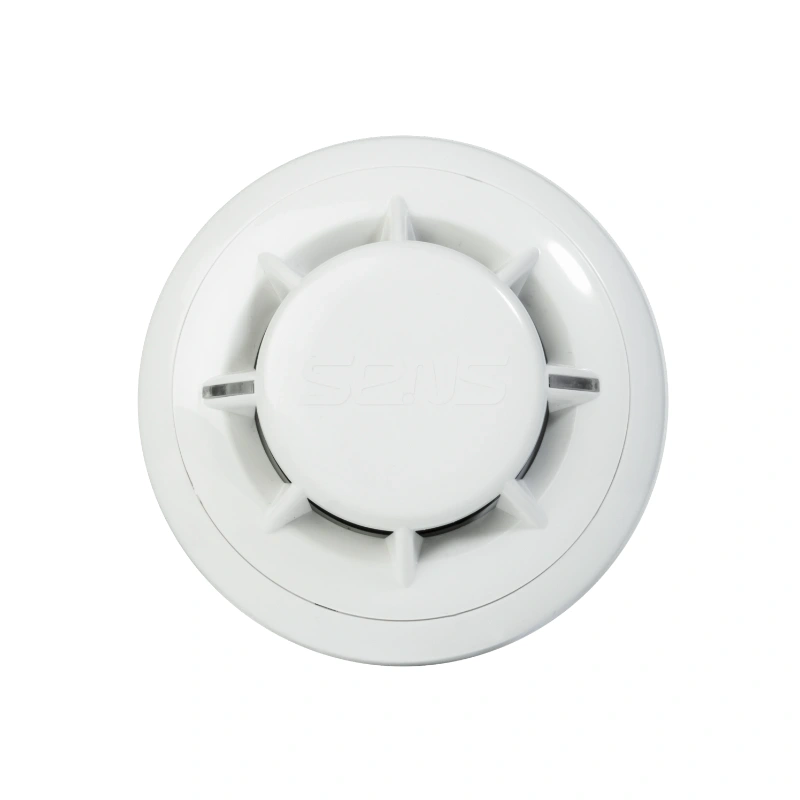

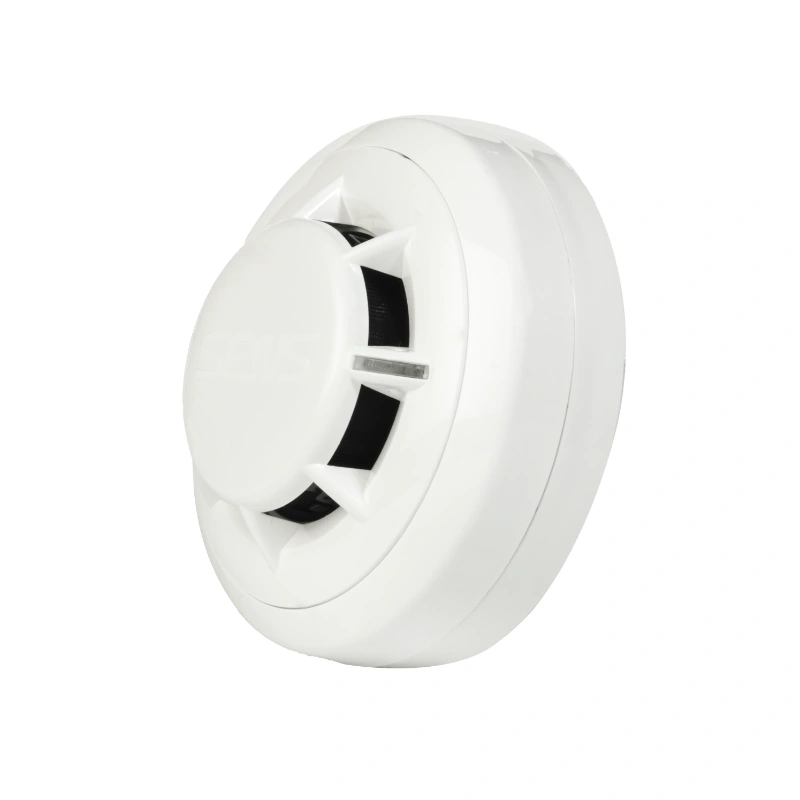

The S2-ASD-300 is an addressable optical smoke detector equipped with a built-in isolator and designed according to EN 54-7 and EN 54-17. It uses a dedicated optical smoke chamber with scattering IR light technology to sense smoke, including very fine particles, while helping reduce interference from dust, insects, and false environmental light. The detector supports easy address programming with a handheld programmer, includes a remote indicator output, and is compatible with WISE addressable panels and other SENS addressable panels. Its low power consumption, durable ABS construction, and humidity tolerance make it a strong option for residential and commercial environments.
2-Year Money-Back Guarantee
Pre-Sales & Technical Support
Product Documentation Available
100% Customer Satisfaction
| Technical Specifications | |
|---|---|
| Model | S2-ASD-300 |
| Design Standard | EN 54-7, EN 54-17 |
| Power Supply Voltage | 27 V |
| Standby Consumption | 0.6 mA @ 27 V |
| Alarm State Current | 1.3 mA @ 27 V |
| Operating Temperature | -10 to 70 °C |
| Humidity | 95% (without condensation) |
| Dimensions | 50 × 100 mm |
| Weight | 120 gr |
| Maximum Line Voltage | 28 V |
| Minimum Line Voltage | 15 V |
| Maximum Isolation Voltage (VSO max) | 6 V |
| Minimum Isolation Voltage (VSO min) | 2 V |
| Maximum Reconnection Voltage (VSC max) | 6 V |
| Minimum Reconnection Voltage (VSC min) | 2 V |
| Maximum Rated Continuous Current with Switch Closed (IC max) | 400 mA |
| Maximum Rated Switching Current (IS max) | 600 mA |
| Maximum Leakage Current (IL max) | 8 mA |
| Maximum Series Impedance with Switch Closed (ZC max) | 0.5 Ω |
